product manual:

First, use:

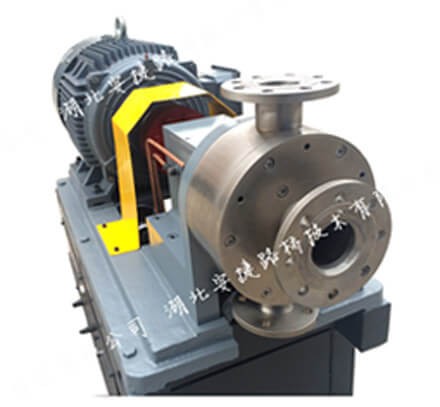

Colloid mills are widely used in petroleum, chemical, food and other industries. According to different uses, different physical properties and different processing characteristics, there are various kinds of grinding in industrial applications, which play the role of homogenization, grinding and shearing. Mat series of asphalt colloid mills, developed for the characteristics of asphalt materials, with a unique "trapezoidal internal tooth" structure, the use of specially developed super-strong alloy materials for the stator and rotor, enabling ultra-high content materials to be cut at one time. It is qualified for grinding and has excellent production capacity. It is known as “super-grinding” and is the most successful asphalt grinding machine in the world. Suitable for processing the following asphalt products:

Modified asphalt：SBS modified asphalt, SBR modified asphalt, PE and resin modified asphalt, ultra high content SBS modified asphalt, high viscosity high elastic asphalt;

Emulsified asphalt: emulsified asphalt for road, emulsified asphalt for waterproofing, SBR/SBS modified emulsified asphalt, high content SBS modified emulsified asphalt, full cold mixed cold emulsified asphalt, high speed railway emulsified asphalt;

Rubber asphalt: rubber asphalt, modified rubber powder asphalt;

Special asphalt: blending asphalt, coal tar modified asphalt, rock asphalt modified asphalt, colored asphalt, flame retardant modified asphalt for tunnels, municipal pipe joint sealing asphalt, horseshoe lawn base asphalt, road surface anti-cursor line bonding asphalt, Self-healing waterproof asphalt,

Second, the working principle

The basic working principle of the Mat series of asphalt colloid mills is shearing, grinding and high-speed agitation. The turntable and the fixed plate are engaged with each other, and the two toothed surfaces are relatively moved, one of which rotates at a high speed and the other of which is stationary. The asphalt mixture moves along the spiral S-shaped path during the process from the center to the edge of the grinding disc, which greatly extends the traveling path. The length increases the time and number of shearing and grinding, so that the material passing through the tooth surface is effectively dispersed, emulsified, pulverized and homogenized under the action of high-frequency vibration, high-speed vortex and the like, and the polymer is subjected to severe friction. Extrusion, smashing and tearing break the molecular chain, so that the polymer re-links under the chemical action of the stabilizer to form a stable network structure. The tooth profile and working principle can be found in the specification.

Third, the colloid mill configuration:

Colloid mill configuration list

Foreign import grinding agent
